Sailsky Industrial AX3000 Wi-Fi 6 Access Point with Qualcomm Ipq5018 Chipset for mining machinery

Model: BL5000X IOT WiFi

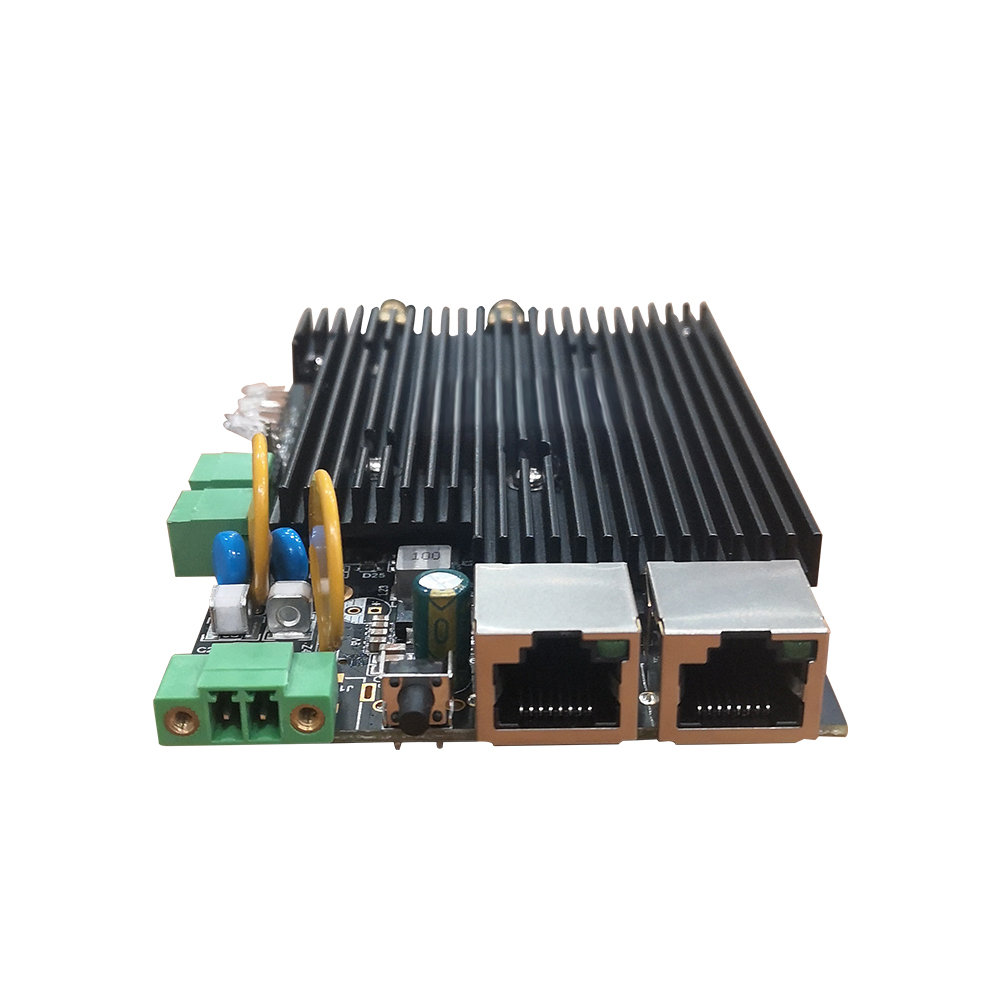

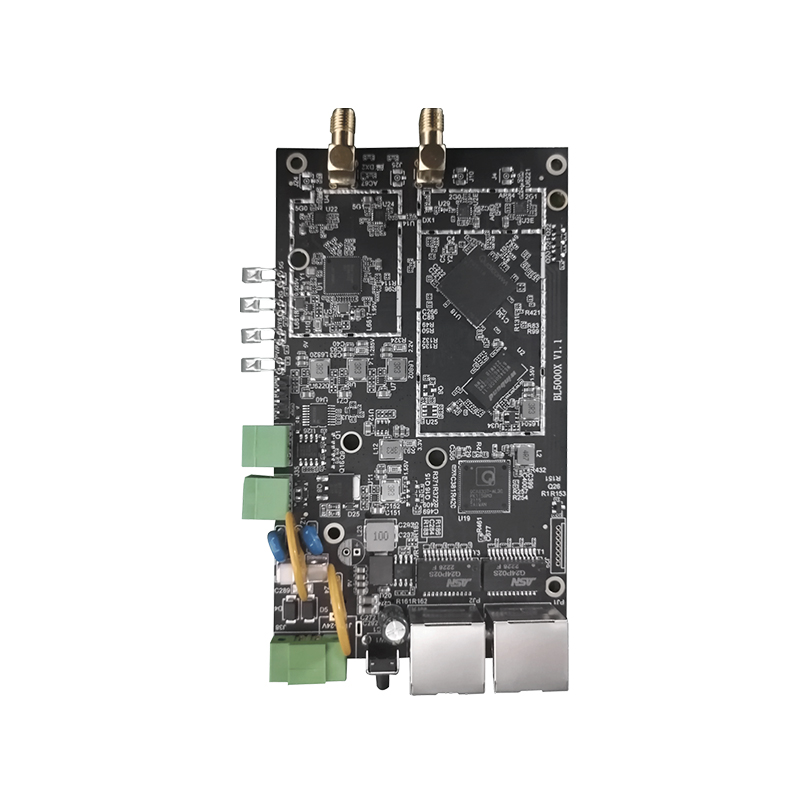

Pcba manufacturer Industrial IoT WiFi6 Module High-Speed AX3000 Wi-Fi6 Standard PCBA with Qualcomm Ipq5018 Chipset for mining machinery

Main Features:

Qualcomm enterprise chips, all kinds of ICs are world-class brands, high stability.

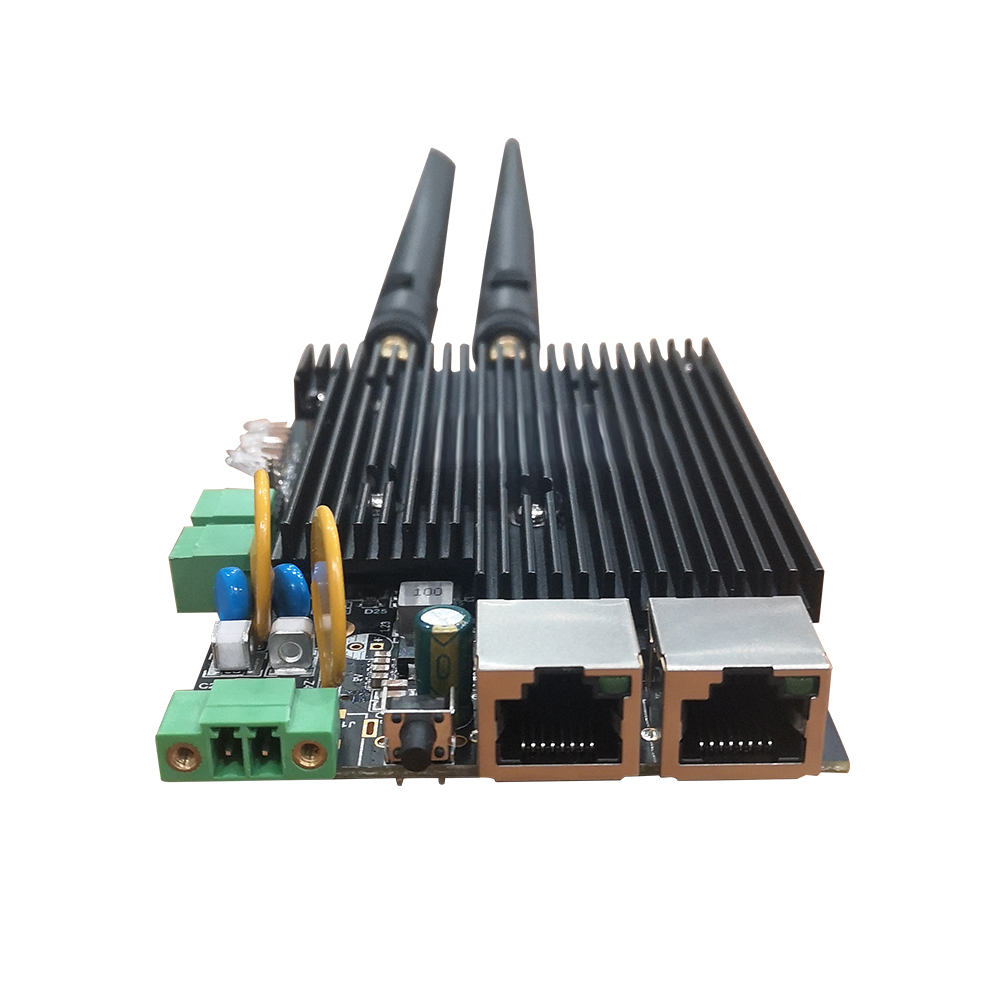

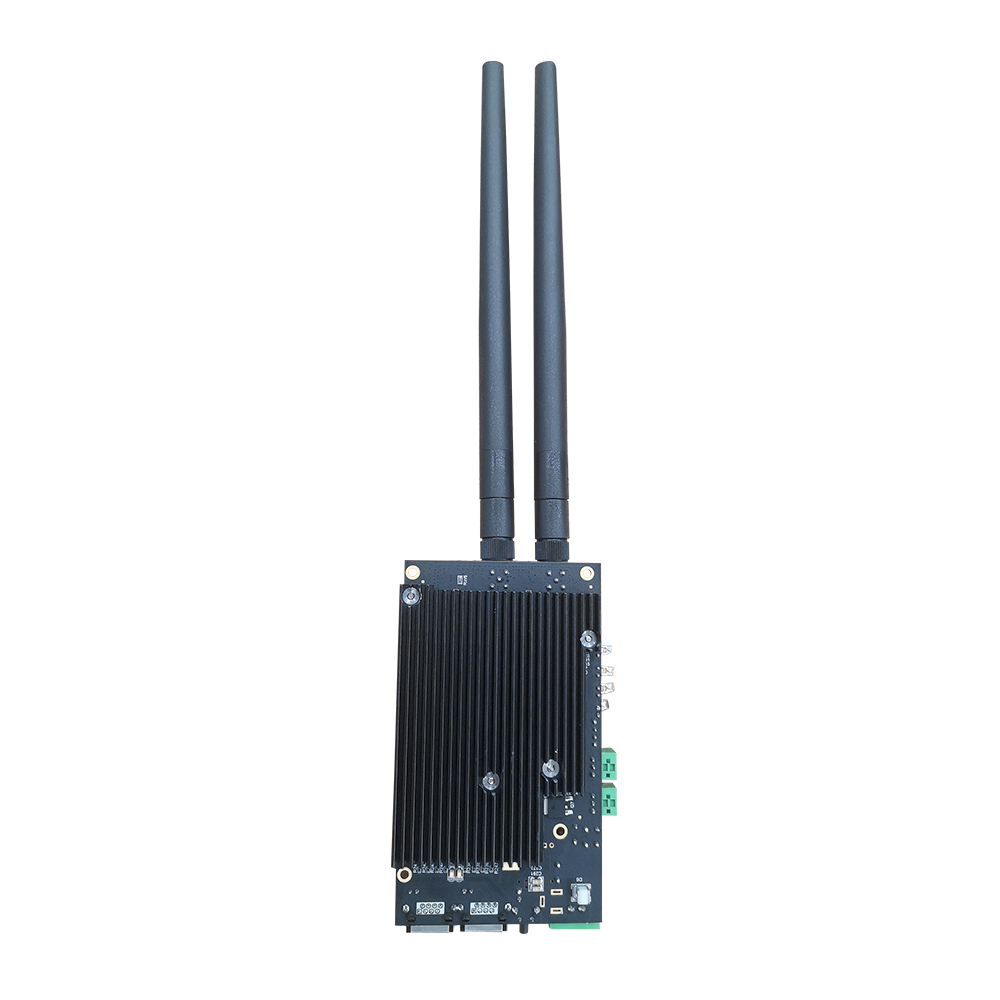

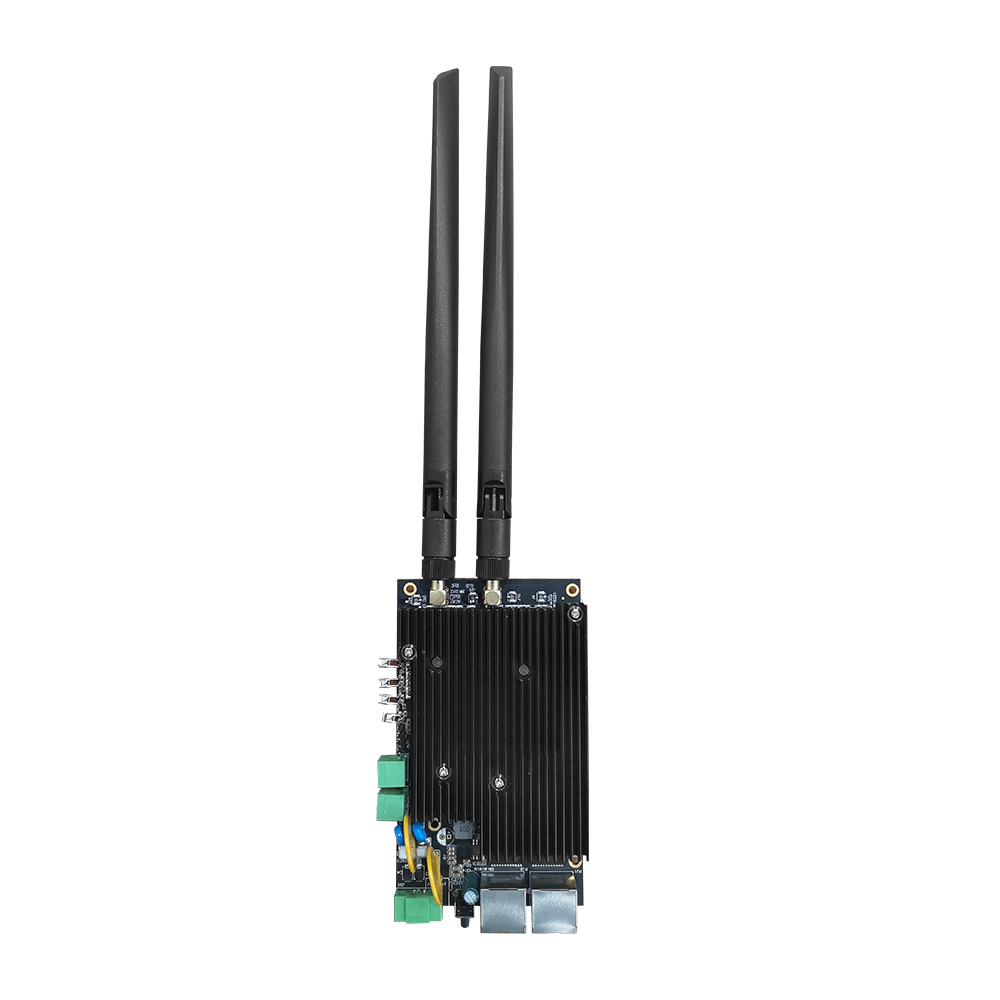

External power amplifier, high power with detachable antenna, stronger wireless signal with wider coverage;
3000Mbps high speed, multiple ports, wide-range voltage, widely be used in different area;
Support 802.11kvr seamless roaming(KVR, Seamless roaming switching times ≤50ms), users automatically switch to high stability signal but no Wi-Fi dropping;
Support WPA3 and 802.1x advance encryption, guard wireless network security all the time;
Strong hardware and firmware technical support for PCBA integrated.
Ultra-miniature design concept Terminal interface, stable and shock-resistant, can be built into the robot
Safe product hardware design The reliable multi-level power supply protection and port protection design

Share it:

Interested?

Welcome to Contact Us for a Quotation!

REQUEST A QUOTE

Ship within 7-10 Working Days for Stocking Products，Customized product should be negotiated

Specifications

Model	BL5000X PCBA
CPU	IPQ5018 + QCN6102 +QCA8337
Flash	128MB+16MB
Memory	256MB
WiFi Standard	IEEE 802.11b/g/n/ac/ax
Frequency	2.4G: 2400 – 2484MHz 5.8G: 5150 -5850MHz -6900MHZ
Wireless Data Rate	600Mbps @ 2.4GHz; 2400Mbps @5.8GHz

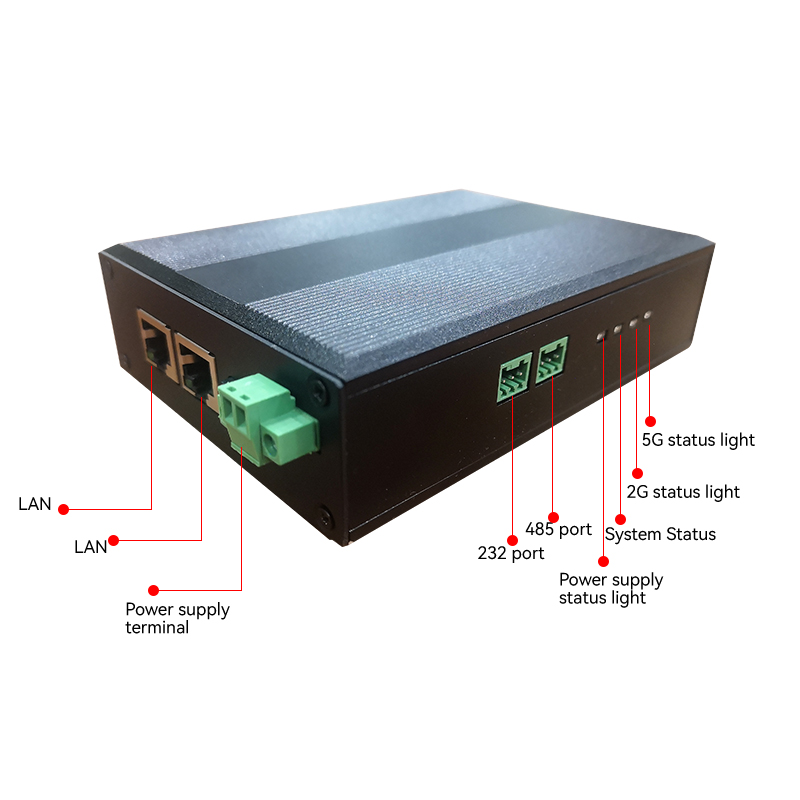

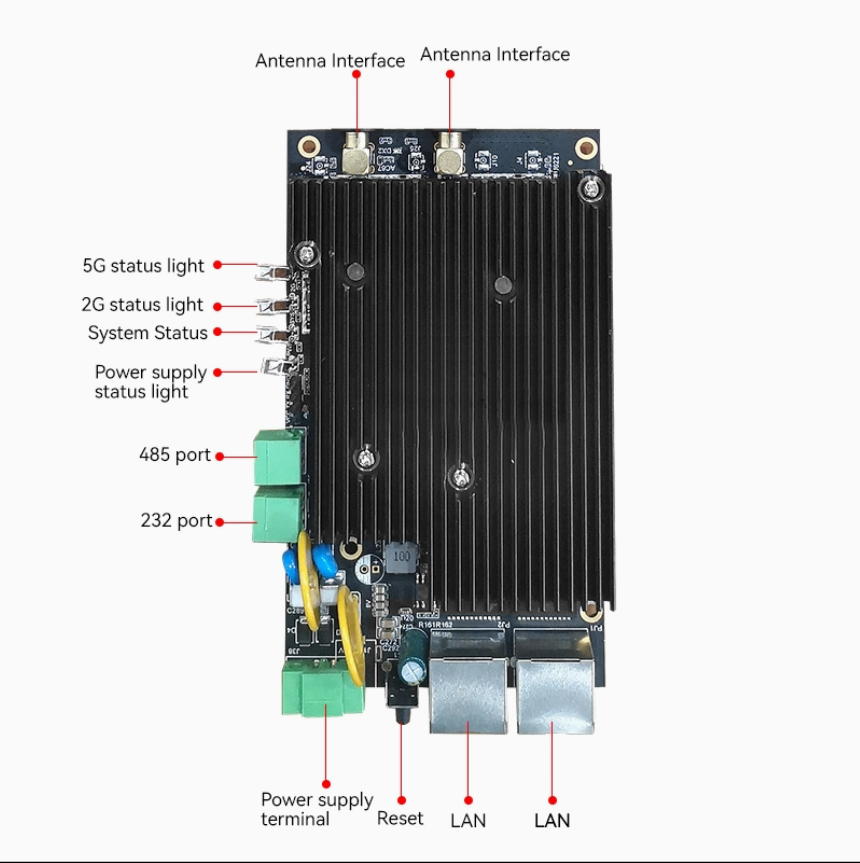

Interface	10/100/1000M WAN1 10/100/1000M LAN1 1DC 1 Phoenix terminal 2SMA Antenns Port 1 RS485 1 * RS232
Communication terminal	1 * RS485; 1 * SP3232;
Button	Reset Button
LED Indicator	PWR LED ,SYS LED ,2.4G LED ,5.8G LED
Antenna	2 combined SMA interface, Directional/Omnidirectional antenna optional
POE Power	9-24V Phoenix terminal and DC interface power supply
RF Power	2PCS antenna: 2.4G≥22 dBm/chain; 5.8G≥21dBm/chain
Power Consumption	<14W
MTBF	≥850000H@25ºC
Operation Mode	Router/AP/Mesh
WiFi users	150+
Transmitter and Receiver Distance	3000meter
Working temperature	Working Temperature:-20ºC~55ºC Storage temperature: -40ºC~70ºC
Humidity	5%~95%

Download

BL5000X SPC 17.46MB

Sailsky Industrial AX3000 Wi-Fi 6 Access Point with Qualcomm Ipq5018 Chipset for mining machinery

The High-Performance IOT Wi-Fi 6 Access Point-BL5000X is a cutting-edge, high-power PCBA designed to deliver unmatched wireless performance in the most demanding environments. Engineered with Qualcomm’s enterprise-grade IPQ5018 chip, this device combines 2.4G + 5.8G dual-band connectivity with blazing speeds of 3000 Mbps and 160 MHz bandwidth for seamless wireless signal access.

Wi-Fi 6 Standard Ensures ultra-fast, low-latency connections ideal for modern wireless networks.
Seamless Roaming Supports IEEE 802.1kvr for smooth transitions between access points without signal interruption.
Wide Voltage Power Supply: Built to handle variable voltage inputs for versatile deployment.
Robust Durability: Operates reliably in extreme temperatures ranging from -40°C to 70°C.
Versatile Connectivity: Equipped with RS485 and SP3232 terminal access for flexible industrial applications.

Wi-Fi 6 Access Point Application Areas:

The Sailsky IOT Wi-Fi 6 Access Point-BL5000X is perfect for a wide range of professional and industrial use cases, including:

UAV Communication and Control
Industrial Automation Systems
Oilfield Data Acquisition
Hydrological Monitoring
Vehicle Monitoring
Wireless Meter Reading
Smart Home Networks
Safety and Fire Protection Systems
Wireless SP3232 Data Communication

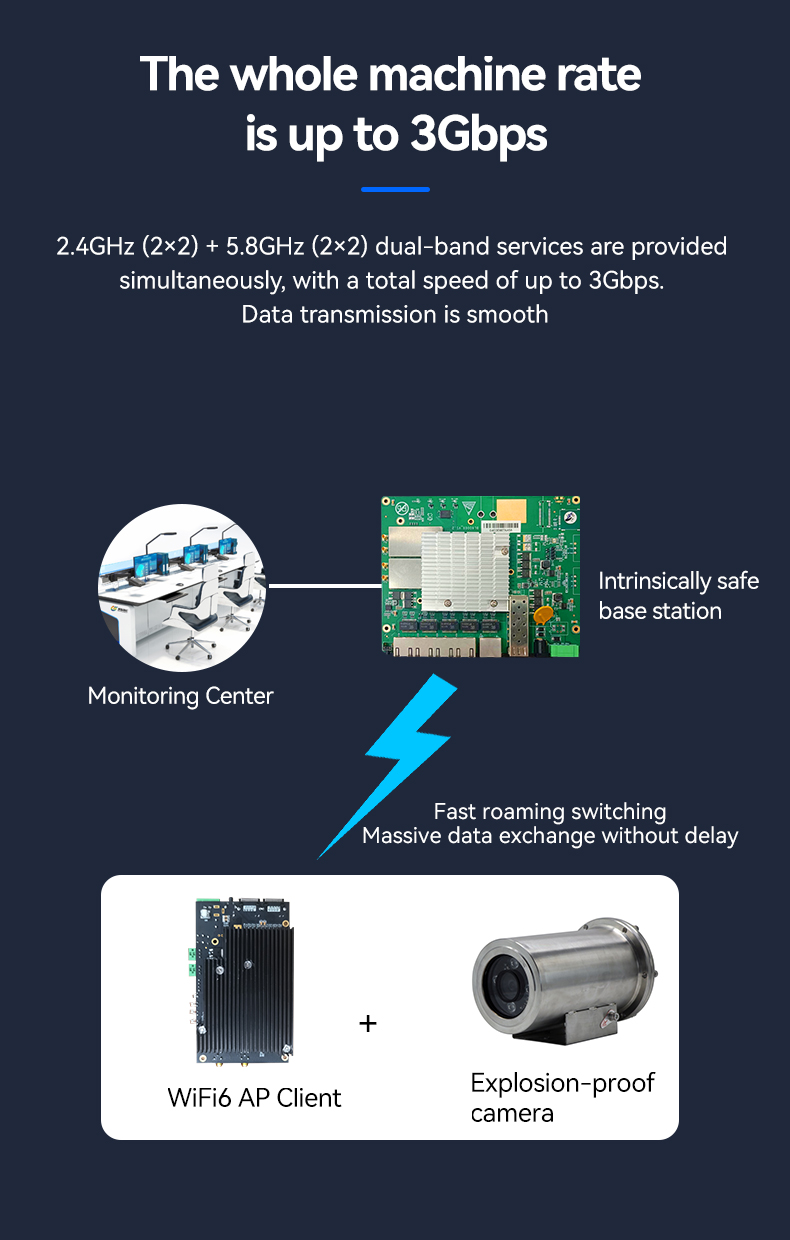

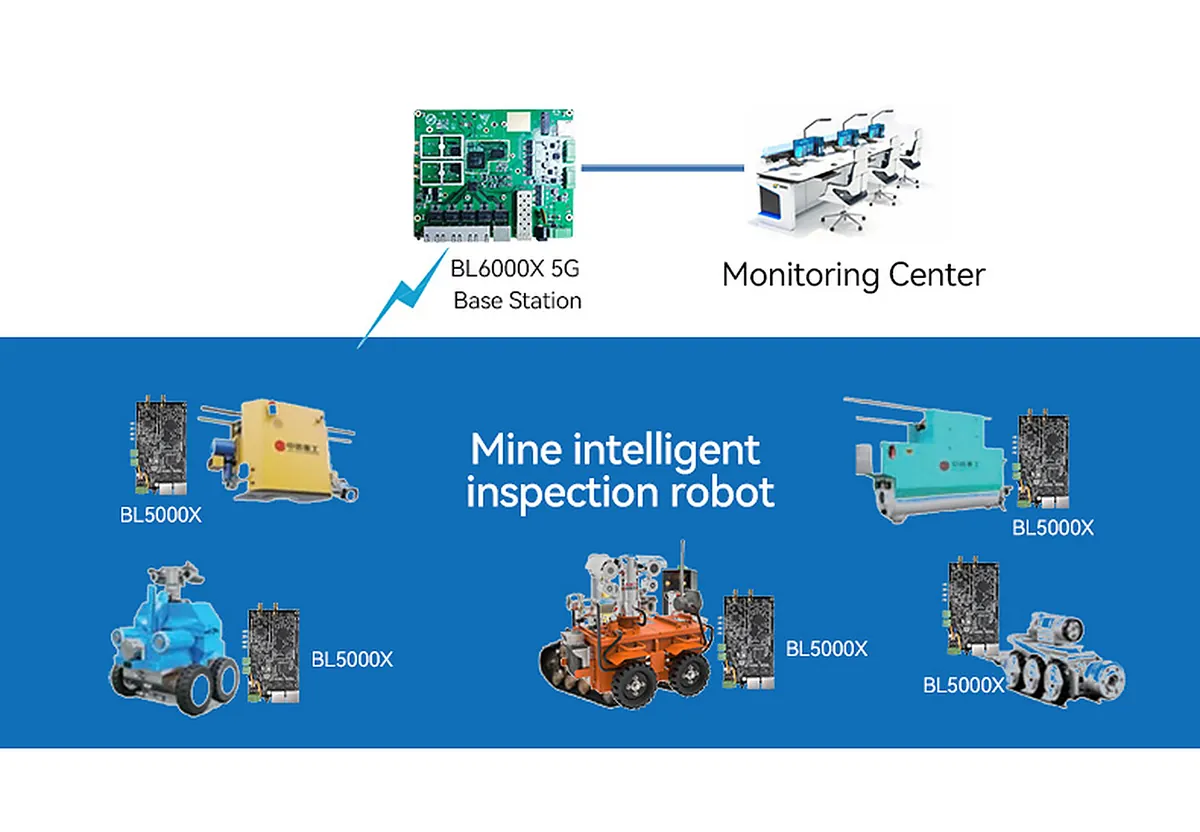

The use of underground wifi6 inspection robots reduces the contradictions of long and difficult manual inspections and shortage of personnel. It effectively realizes unmanned fixed positions on site and fewer people in mobile positions, eliminates the lag of manual inspection, and reduces the cost of manual inspection. Risks to on-site operations for job personnel. It can also provide timely reporting of abnormal data and accidents to reduce personnel safety risks.

Sailsky Wi-Fi 6 Access Point intelligent inspection robot can switch between manual and automatic modes for intelligent operation. It is equipped with a Sailsky wifi6 module, AI smart camera, pickup truck, smoke sensor, wireless autonomous charger, walking device, etc. It can establish a system based on audio/video, vibration, Intelligent inspection and monitoring platform integrating multiple sensors such as temperature and smoke.

It has realized various functions such as belt conveyor belt deviation, edge damage, abnormal noise of the roller, over-temperature of the roller, online temperature and vibration measurement of the driving device, and monitoring of the discharge port of the unloading trolley.

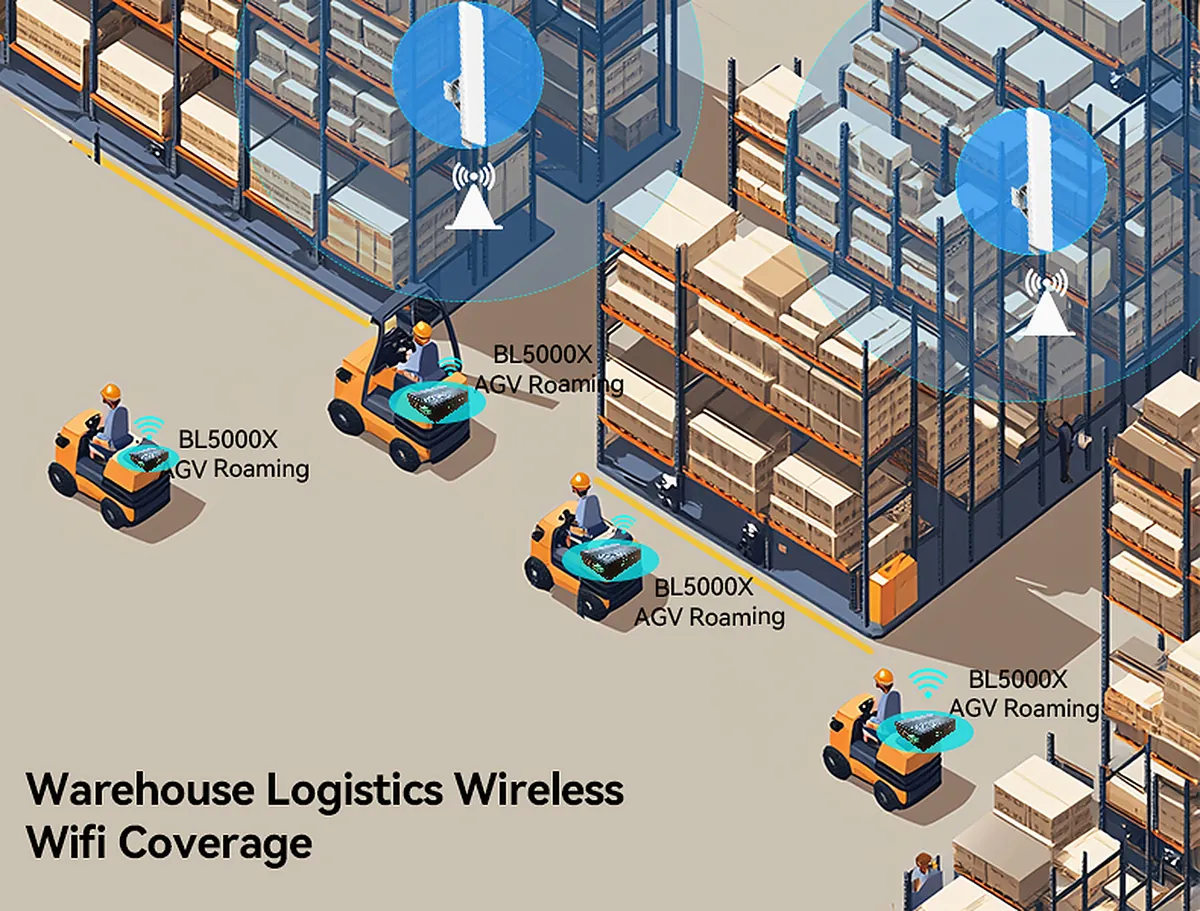

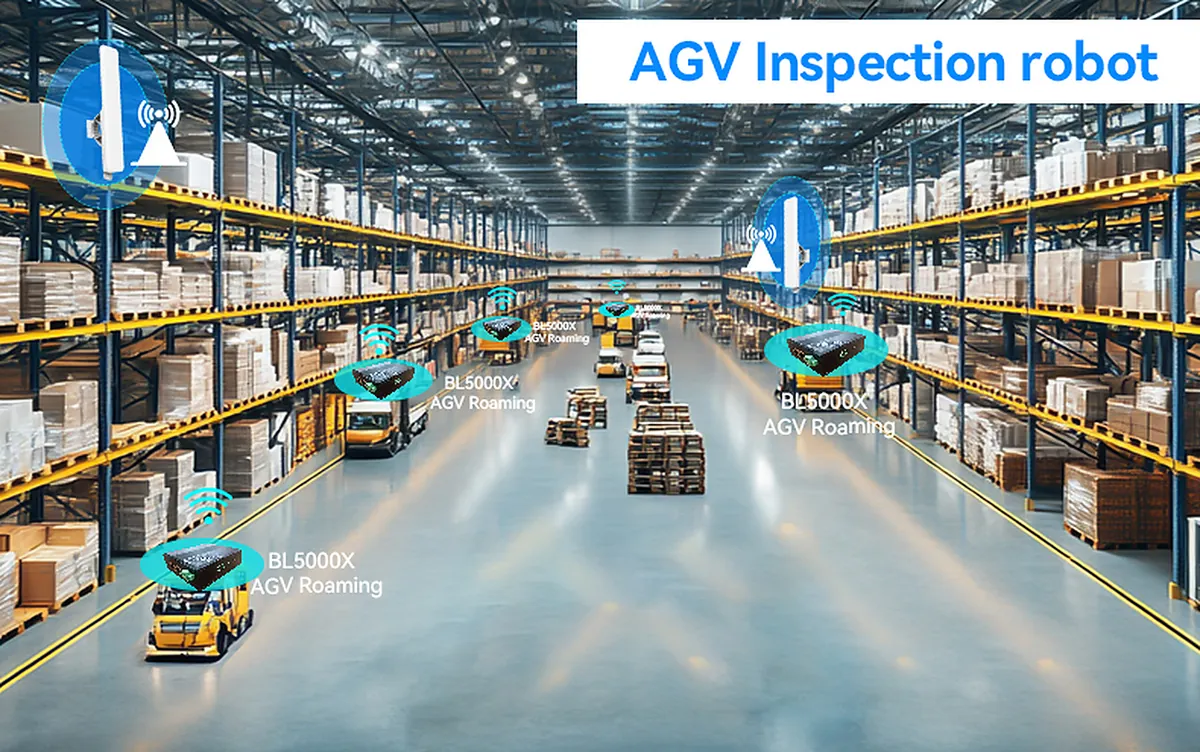

Warehouse Logistics Wireless wifi Coverage Feature

●Excellent radio frequency technology, wide range of wireless coverage;

● Industrial grade products are highly stable and reliable;

● High-density access technology;

● Seamless roaming technology;

● Voice call optimization;

● Same-frequency networking technology, client switching can reach millisecond level quickly;

● Wireless cloud network management;

● Good wireless compatibility, supporting various wireless terminals;

● Easy to deploy and flexible networking;

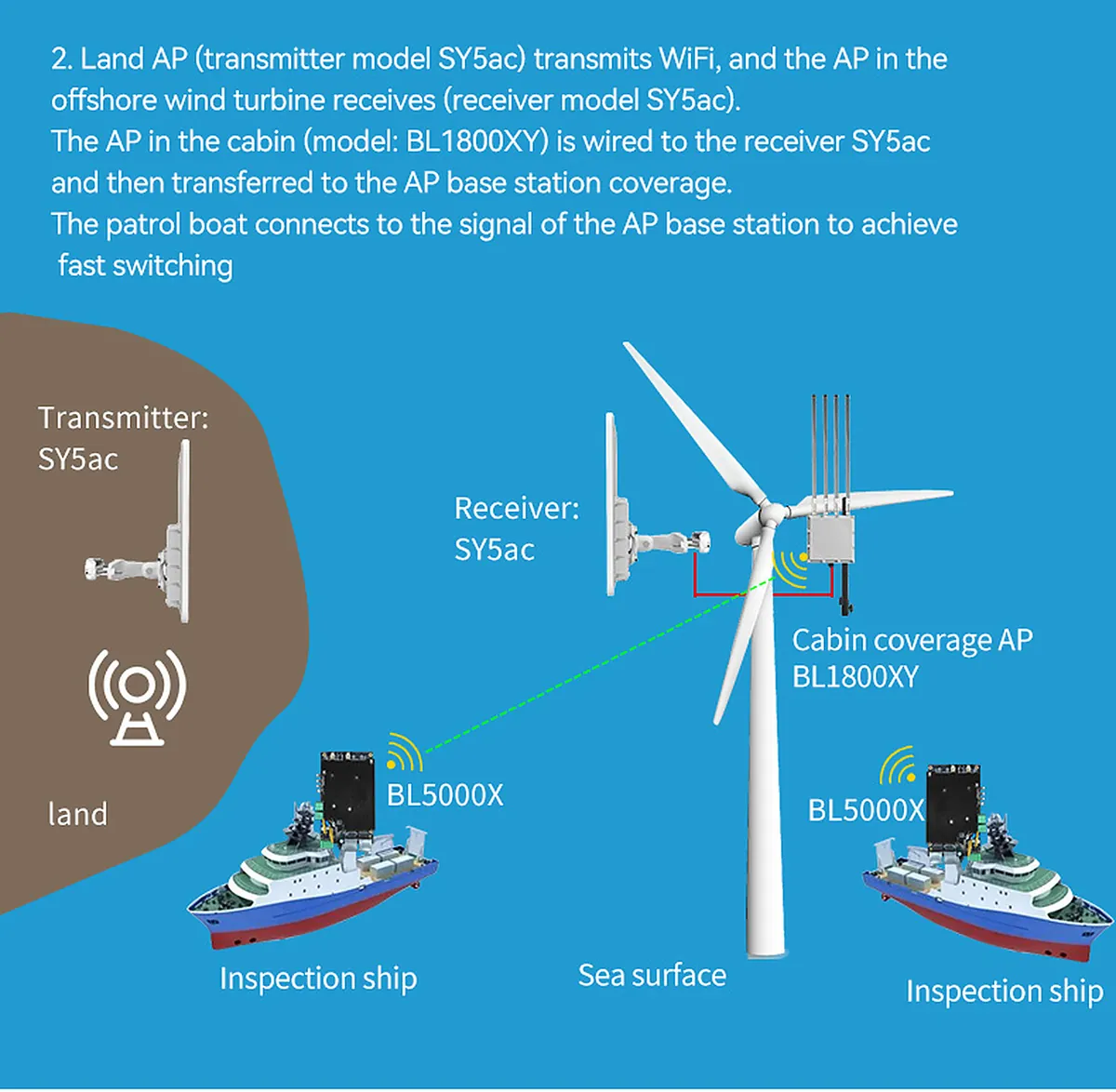

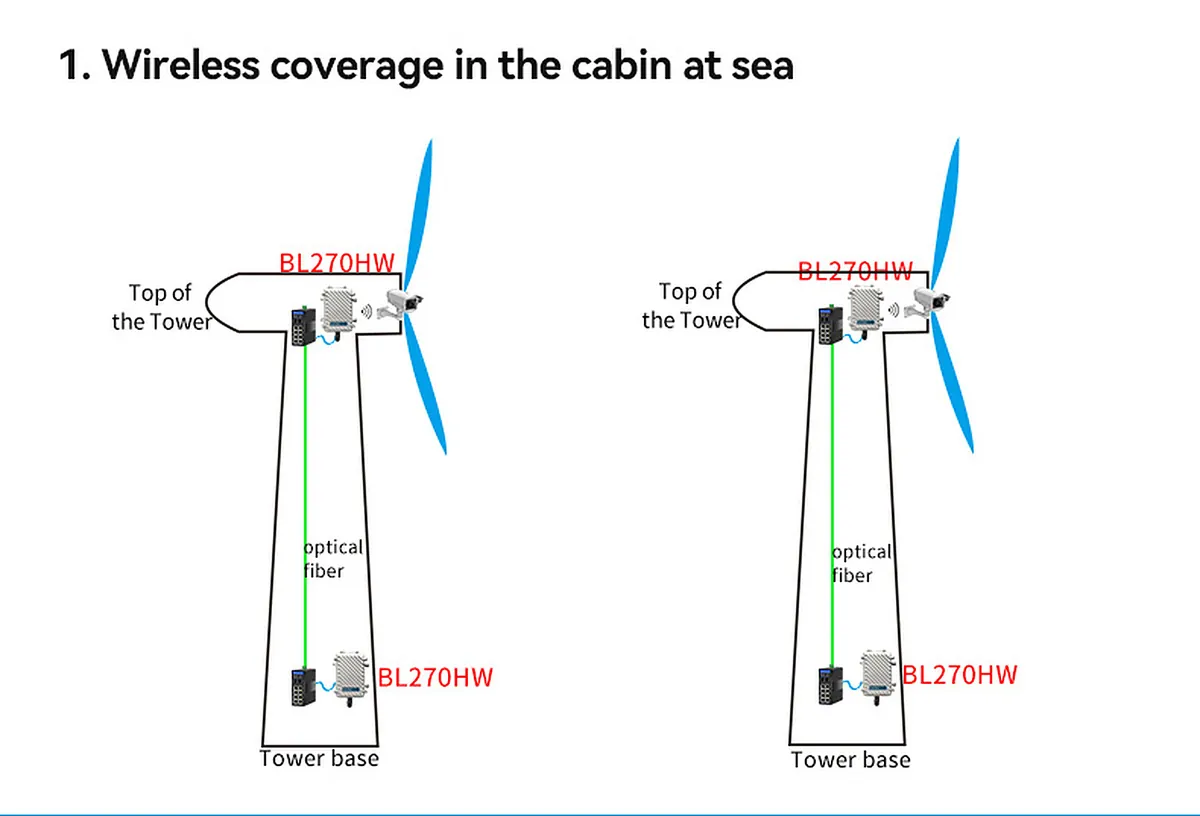

Wi-Fi 6 Access Point-Offshore wind power wireless transmission solution

During the construction of offshore wind power plants and offshore wind farms, the problem of long-distance communication at sea has become a problem that must be faced. Due to the special situation, wireless communication has become the best application choice. In view of the current network construction problems in the wind power industry, the industry’s advanced wireless Mesh network coverage networking technology can be used to break through the dilemma of no wireless network coverage in wind power stations and realize the integration of audio and video data transmission for on-site operations in wind power stations.
