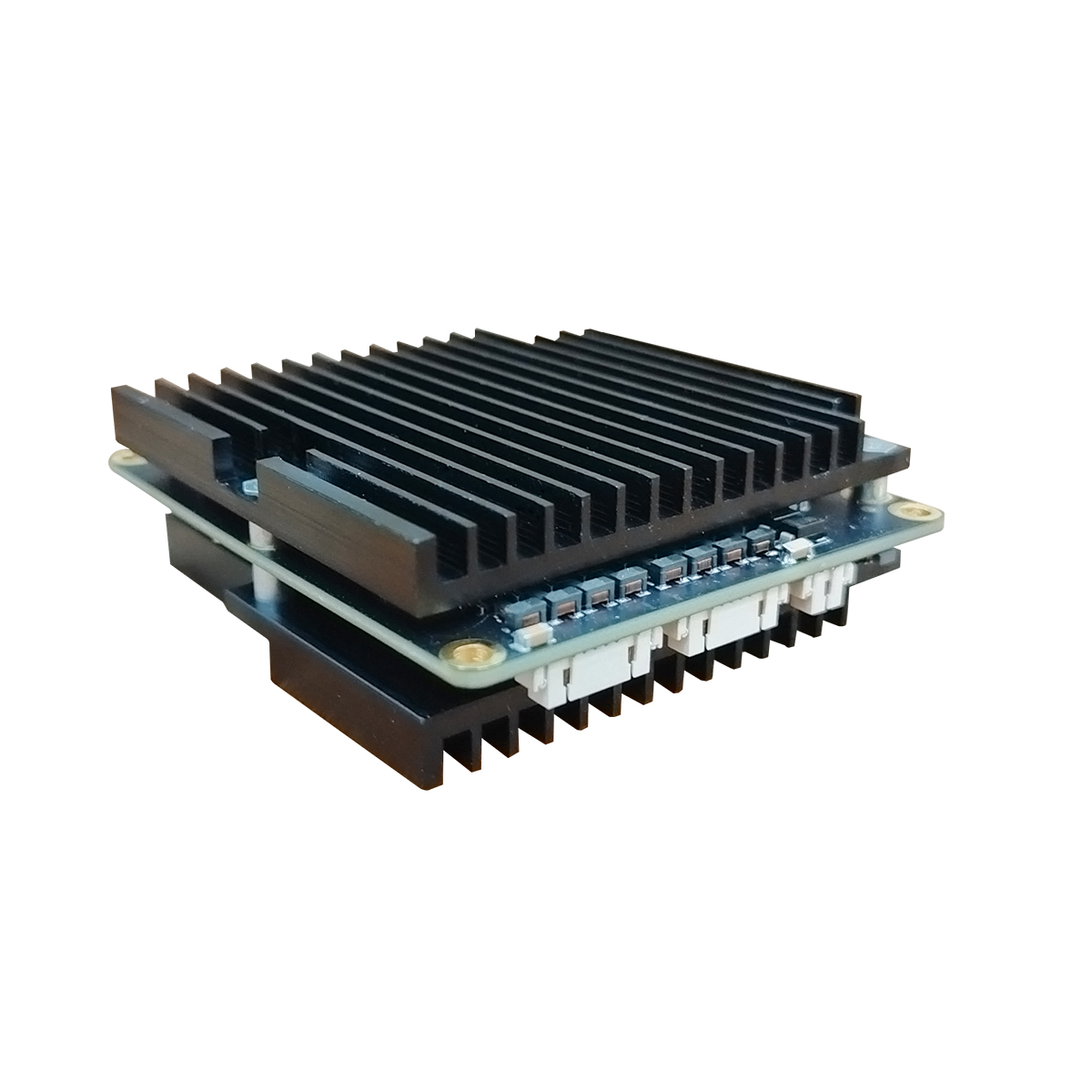

Sailsky Tiny Size Industrial AX3000 Wi-Fi 6 Access Point with Qualcomm Ipq5018 Chipset for mining machinery

Model: BL5000Air AGV Roaming Client Industry Access Point Pipe Gallery Access Point

China factory Tiny Size Industrial AX3000 wifi 6 ap client with Qualcomm Ipq5018 Chipset support Millisecond-level seamless roaming

Main Features:

Qualcomm enterprise chips, IPQ5018+6102+8337,
External power amplifier, high power with detachable antenna, stronger wireless signal with wider coverage;
High Speed 3000Mbps,
KVR, Seamless roaming switching times ≤50ms,
Support WPA3 and 802.1x advance encryption, guard wireless network security all the time;
Strong hardware and firmware technical support for PCBA integrated.
Tiny Siez:75*65*23mm
Safe product hardware design The reliable multi-level power supply protection and port protection design

Share it:

Interested?

Welcome to Contact Us for a Quotation!

REQUEST A QUOTE

Ship within 7-10 Working Days for Stocking Products，Customized product should be negotiated

Specifications

Model	BL5000Air
CPU	IPQ5018 + QCN6102 +QCA8337
Flash	1Gb Nand Flash
Memory	4Gb DDR3
WiFi Standard	IEEE 802.11b/g/n/ac/ax
Frequency	2.4G: 2400 – 2484MHz 5.8G: 5150 -5850MHz -6900MHZ
Wireless Data Rate	600Mbps @ 2.4GHz; 2400Mbps @5.8GHz
Interface	2*10/100M/1000M network ports (1.25-8P connector) 1 power supply terminal (1.25-2P connector) 1 reset button, built-in 1 debugging serial port Terminal Block and Antenna IPEX Holder, Vertical
Button	Reset Button
LED Indicator	PWR LED ,SYS LED ,2.4G LED ,5.8G LED, Electrical port(2 lights) Electrical port(1 lights)
Antenna	2 IPEX antenna mounts (2G and 5G with duplexer combined)
Antenna Spec	Different Antenna Configurations Available 1. Omni-directional antenna 2. Directional antenna
POE Power	9-24V Phoenix terminal and DC interface power supply
Polarization	Dual polarization
Antenna efficiency	≧50% @ 2.4~2.4835GHz ≧50% @ 5.15~5.85GHz
Power Consumption	<9W
Transfer Protocol	IEEE802.11a/b/g/n/ac/ax，2.4G MIMO2X2, 5.8G MIMO 2X2
Operation Mode	AP(mesh/repeater)/Client mode (KVR roaming protocol, Seamless roaming switching times ≤50ms)
WiFi users	150+
Transmitter and Receiver Distance	3000meter
Working temperature	Working Temperature:-40ºC~70ºC Storage temperature: -40ºC~85ºC
Humidity	5%~95%

Download

BL5000Air SPC 11.29MB

Sailsky Tiny Size Industrial AX3000 WiFi 6 ap client with Qualcomm Ipq5018 Chipset.

In the IoT and Industry 4.0 era, wireless networks are key for connecting things. For industrial and mining fields, stable and fast wireless links are needed for smart upgrades and smooth work. BL5000Air, a WiFi 6 AP client following 802.11ax, stands out with its great tech, good performance, safe design, multiple modes, and fast roaming. It helps industries go digital.

I. Fast Roaming: Always – on Connection

Fast roaming matters in busy industrial places. BL5000Air is great at this. With the KVR protocol, it can switch clients in ≤50ms. This means for moving devices like mobile robots in factories or mining trucks, it can change access points smoothly. Data transfer stays stable, allowing real – time monitoring. For example, a robot with BL5000Air can move around a factory and send data without lag.

II. Multiple Modes: Total Flexibility

BL5000Air offers two main modes: AP (Mesh/Repeater) and Client.

AP Mode (Mesh & Repeater)

AP Mode: In AP mode, BL5000Air is like a central hub. It lets many devices connect to one network. In a smart factory with lots of sensors, this helps data flow well. Sensors can send production data to the local network through it, which helps make production better.

Mesh in AP Mode: The mesh feature in AP mode is great for big industrial areas. Multiple BL5000Air units can form a network that fixes itself. If one unit breaks, the network can still work by using other units. This keeps the connection stable in large factories or mines.

Repeater in AP Mode: As a repeater, BL5000Air can make a wireless network cover more area. In a big warehouse, it can pick up weak signals and send them again. This is useful for mobile devices like forklifts to stay connected.

Client Mode

In client mode, BL5000Air works as a wireless adapter for devices without built – in WiFi. It can help old – style industrial systems get online. This is handy for old equipment that needs to join a modern wireless network without big hardware changes.

III. High – Performance: Smooth Data Flow

BL5000Air uses Qualcomm’s Wi – Fi 6 tech and supports 2.4GHz (2×2) and 5.8GHz (2×2) bands. It can reach 3Gbps. The 5.8G band has a max 2400Mbps, good for high – bandwidth jobs like HD video. The 2.4G band with a gigabit port can reach 574Mbps, suitable for sensors needing a stable link.

With the IPQ5018 + 6102 + 8337 chip, it can handle data well. It has two 10/100M/1000M network ports and one power port. It’s easy to connect to many industrial devices and can support over 158 WiFi users at once.

IV. Safe & Reliable: For Tough Conditions

In industry, stable and safe equipment is important. BL5000Air’s hardware meets safety rules and has power and port protection. It can work in – 40°C to 70°C, store in – 40°C to 85°C, and handle 5% – 95% humidity. In mines with strong interference, it can keep underground communication stable.

Its low – power design cuts heat, makes the device last longer, and reduces maintenance costs. It’s perfect for long – term industrial use.

V. Small & Flexible: Many Uses

BL5000Air is small (75×65×23mm) but powerful. Its interface is stable and shock – proof. It can be put into robots, cameras, etc. to give them stable WiFi. In mobile robot inspections, it helps robots send data and images in real – time, making inspections faster.

VI. Widely Used: Helping Industries Grow

Because of its good performance, flexibility, and fast roaming, BL5000Air is used in many industries. In factories, it helps connect devices and share data. In high – bandwidth areas, it meets 5G base station and data center needs.

In short, BL5000Air is a top choice in industrial – grade WiFi 6 AP clients. It gives stable and fast wireless solutions, helps with digital change, and is a reliable industrial – grade wireless device.
