Wifi 7

Sailsky NEW WiFi 7 Access Point 9300mbp Tri-Band Indoor Ceiling AP Support 350+ WiFi Users

Model: BL-AP7236 Indoor Access Point Wireless Access Point

WIFI7 Key Technologies
  • QAM-4096 Quadrature Amplitude Modulation: A modulation technique boosting wireless signal’s data-carrying capacity for higher throughput and speed.
  • MRU: Optimizes data packet reception for efficient handling at the receiving end to meet WIFI7’s high-performance needs.
  • MLO: Enables using multiple frequency bands or links simultaneously, enhancing bandwidth, reliability, and speed.
  • Punctured Transmission: Improves data transmission efficiency by selectively omitting bits without sacrificing message integrity.
  • R-TWT: Reduces device transmission time, leading to lower latency and better wireless medium utilization.
  • 802.11ba Deep Energy Saving: Reduces power consumption in WIFI7 devices for better energy efficiency.
  • 802.11az high-precision positioning: Allows more accurate device location determination within the wireless network.

Share it:

Share it:

Interested?

Welcome to Contact Us for a Quotation!

Ship within 7-10 Working Days for Stocking Products,Customized product should be negotiated

Specifications

Model BL-AP7236 Dual Band

BL-AP7396 Tri-band

Chipset IPQ5312 +1* QCA8384 + QCN6402+QCN6412
Flash 128MB_SPI_ nand Flash
Memory 512MB DDR4
Standard IEEE 802.11b/g/n/ac/ax/be
Frequency 2.4G:2400-2484MHZ

5.8G:5150-5850MHZ

6G:5925-7125MHZ

Wireless data rate 688Mbps @ 2.4GHz;
2882Mbps @5.8GHz;
5764Mbps @ 6GHz
2.4G 2×2 40MHz
5.8G 2×2 160MHz,
6G: 2×2 320MHz, MU-MIMO

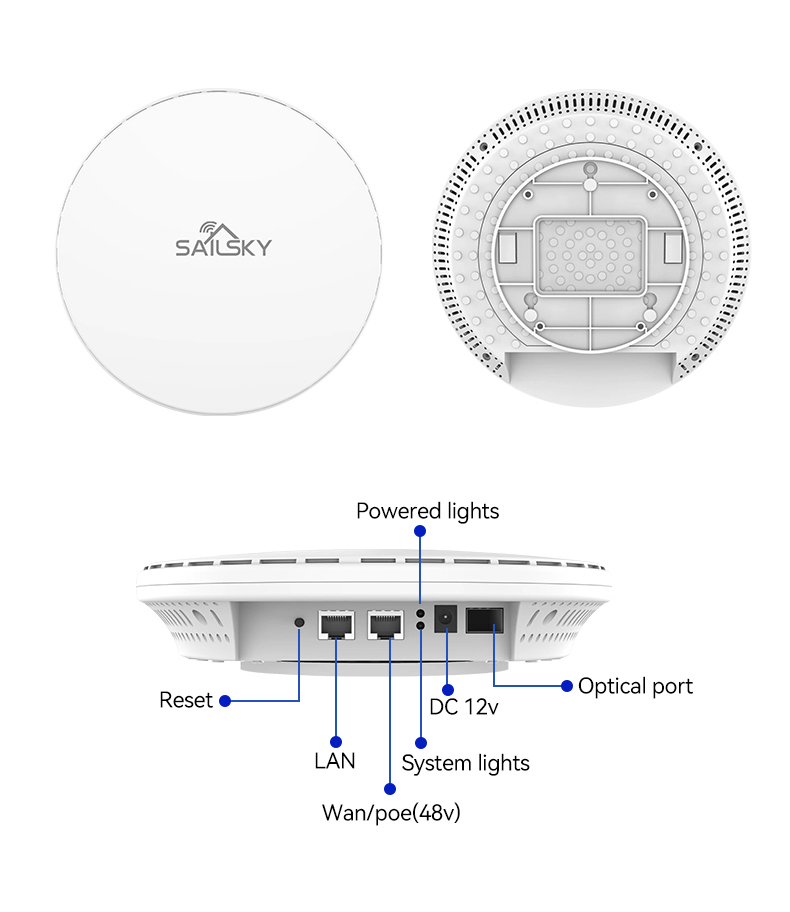

Interface 1*2.5G LAN,
IEEE 802.3at PoE 1*2.5G WAN
1*USB port, optional
1*SFP port, optional
POE Power WAN Port 48V 802.3at POE
RF Power 2.4G≤20 dbm/chain
5.8G≤22 dbm/chain
6G≤22 dbm/chain
Antenna Built-in antenna 4*5dBi antenna module
Button Reset button
Operation Mode AP/Main mesh/Node mesh
Power Consumption <25W
DC Power supply Input 12V / 2A (DC);

2.5GE/PoE, IEEE 802.3at standard

WiFi Users 2.4G: 128
5.8G:128
6G:128
Coverage distance 100meters(Radius)
Warranty 12 months
Working temperature Working Temperature:-20℃~45℃
Storage temperature:-40℃~70℃
Humidity:5%~95%









Download

Sailsky NEW WiFi 7 Access Point 9300mbp Tri-Band Indoor Ceiling AP Support 350+ WiFi Users

Dual Band (2.4G + 5G) WiFi 7 Access Point BL-AP7236

  • Data Rate: WiFi7’s Data Rate up to 3600Mbps, which enables relatively fast wireless data transmission for connected devices.
  • User Capacity: Support Wifi users over 250 users within a radius of 35 meters, making it suitable for medium to large-sized environments like offices, cafes, or small event venues.
  • Antenna: Built in 4*5dBi antenna, which helps in radiating and receiving wireless signals effectively within its coverage area.
  • Interface: Equipped with a 2.5G WAN/LAN interface, providing flexibility for connecting to wide area networks or local area networks with high-speed data transfer capabilities.

Tri-band (2.4G + 5G + 6G) WiFi 7 Access Point

BL-AP7396

  • Data Rate: It’s Offers an impressive 9300Mbps data rate, allowing for extremely fast and smooth wireless communication, ideal for handling bandwidth-intensive applications and multiple devices simultaneously.

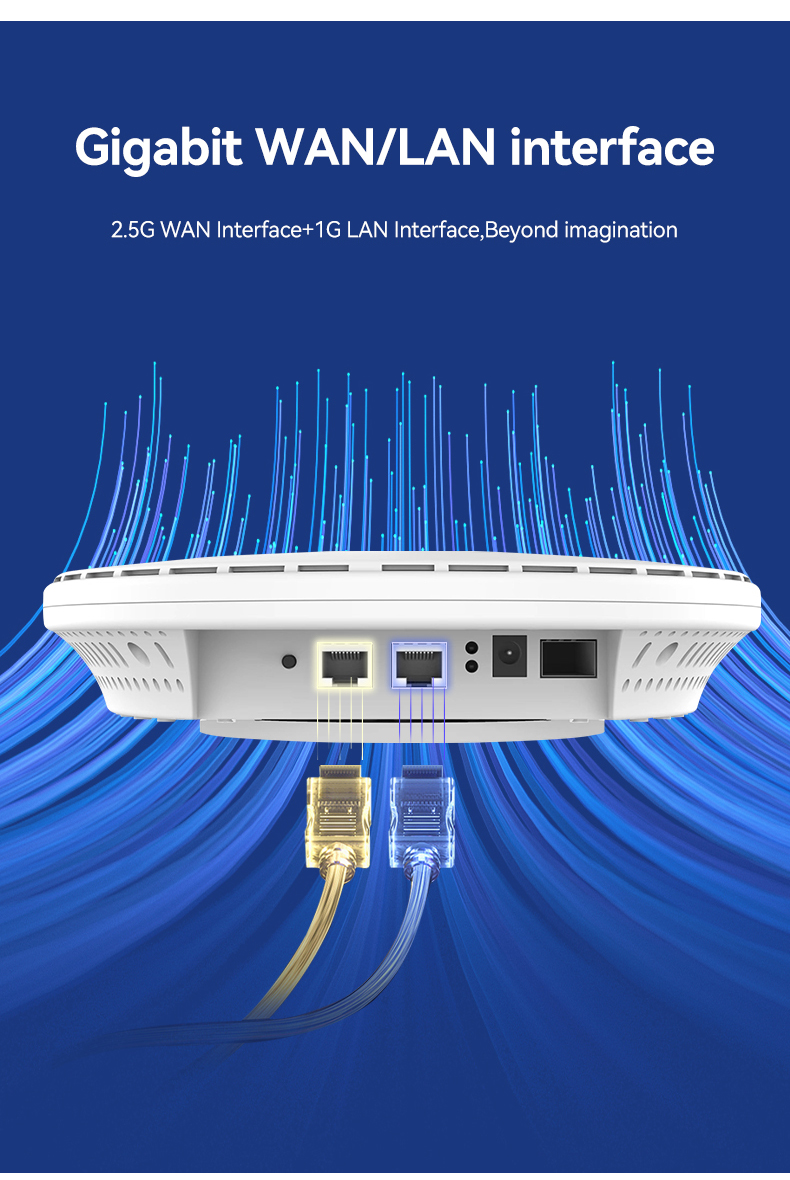

  • Interface: It’s with a 2.5G WAN + 1G LAN interface combination. The 2.5G WAN interface is for high-speed internet connection from the service provider, while the 1G LAN interface can be used for connecting local devices.
  • User Capacity: Is capable of handling more than 350 users within the same 35-meter range, making it even more suitable for larger and more crowded areas where many devices need to be connected wirelessly.

Sailsky WiFi 7 Access Point Notable Features

  • Energy saving: Besides the specific 802.11ba Deep Energy Saving aspect, the overall design of WIFI7 incorporates multiple mechanisms to reduce power consumption, extending the battery life of mobile devices and reducing energy costs for fixed installations.
  • Mesh Technology: Convenient to establish a Mesh network. By connecting multiple access points togethe, it enables seamless coverage expansion and allows devices to switch between them smoothly for better connectivity, ensuring comprehensive wireless coverage in large areas.
  • Cloud Management: Enables network administrators to remotely manage and configure access points via the cloud. This provides convenience and flexibility in network management, especially for multiple access points deployed in different locations.
  • High positioning accuracy: Thanks to 802.11az high-precision positioning, WiFi 7 Access Point can precisely locate devices, opening up possibilities for advanced location-aware services.
  • IPv6 Support: Allows for the use of Internet Protocol version 6. IPv6 offers a larger address space and enhanced network functionality compared to IPv4, facilitating the connection of a vast number of devices and enabling more advanced network services.
  • 802.11KVR Seamless Roaming: Ensures seamless roaming. When users move within the coverage area, their devices can switch access points without noticeable network disruptions.

WiFi 7 Access Point Hardware Specifications

  • 350+ wifi users: Indicates that the access point has the capacity to support a large number of simultaneous wireless users, making it suitable for crowded environments like large offices, public venues, or campuses.

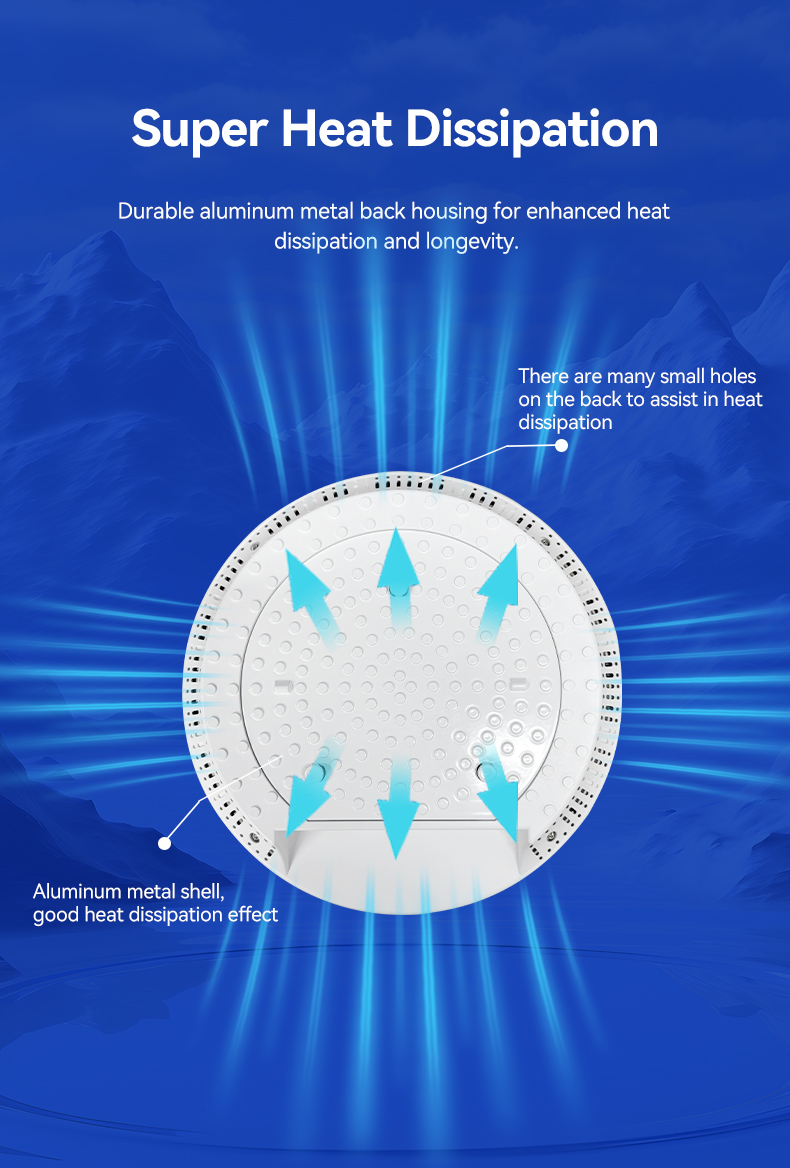

  • Metal housing: Sailsky WiFi 7 access points are housed in metal enclosures, The metal enclosure offers better durability, heat dissipation, and protection against electromagnetic interference compared to plastic housings, ensuring the long-term stability and reliable performance of the access point.
  • 2.5G ethernet port: Provides a high-speed wired connection option, allowing for fast data transfer between the access point and the local area network or wide area network, and can also support the overall high-throughput requirements of WIFI7 for wired backhaul or device connections.
These two versions of the Sailsky WiFi 7 Access Point seem to be designed to meet different user needs in various wireless networking scenarios.

Applications

The Sailsky WiFi 7 Access Point is ideal for scenarios requiring resilient WLAN coverage, including:

  • Office: In open areas, WiFi 7 access point gives high-speed, stable coverage for many devices to boost work efficiency. In conference rooms, it enables smooth video conferencing, etc.
  • Educational: In classrooms, it meets learning needs and supports AR/VR apps. In libraries, it offers stable network for study.
  • Hospitality: In hotel rooms/lobbies, it provides good access for guests. In halls, it supports event network needs.
  • Retail/Commercial: In malls, it helps customers online and merchants promote. In restos/cafes, it attracts customers with stable access.
  • Healthcare: In patient rooms, WiFi 7 access point ensures stable network for communication and equipment. In waiting areas, it improves waiting experience.
  • Industrial/Manufacturing: In warehouses, it aids work efficiency. On production lines, it enables remote control and improves quality.

When you choose a 9300mbps Mesh AP Wi-Fi 7 Access Point, you obtain strong and future-oriented connectivity. It has the power to handle challenging applications in any environment. Whether it’s for business, community, or industrial purposes, this solution ensures performance and reliability.

Aslo can Shop:Sailsky Dual Band AX3000 WiFi 6 Ceiling Access Point
